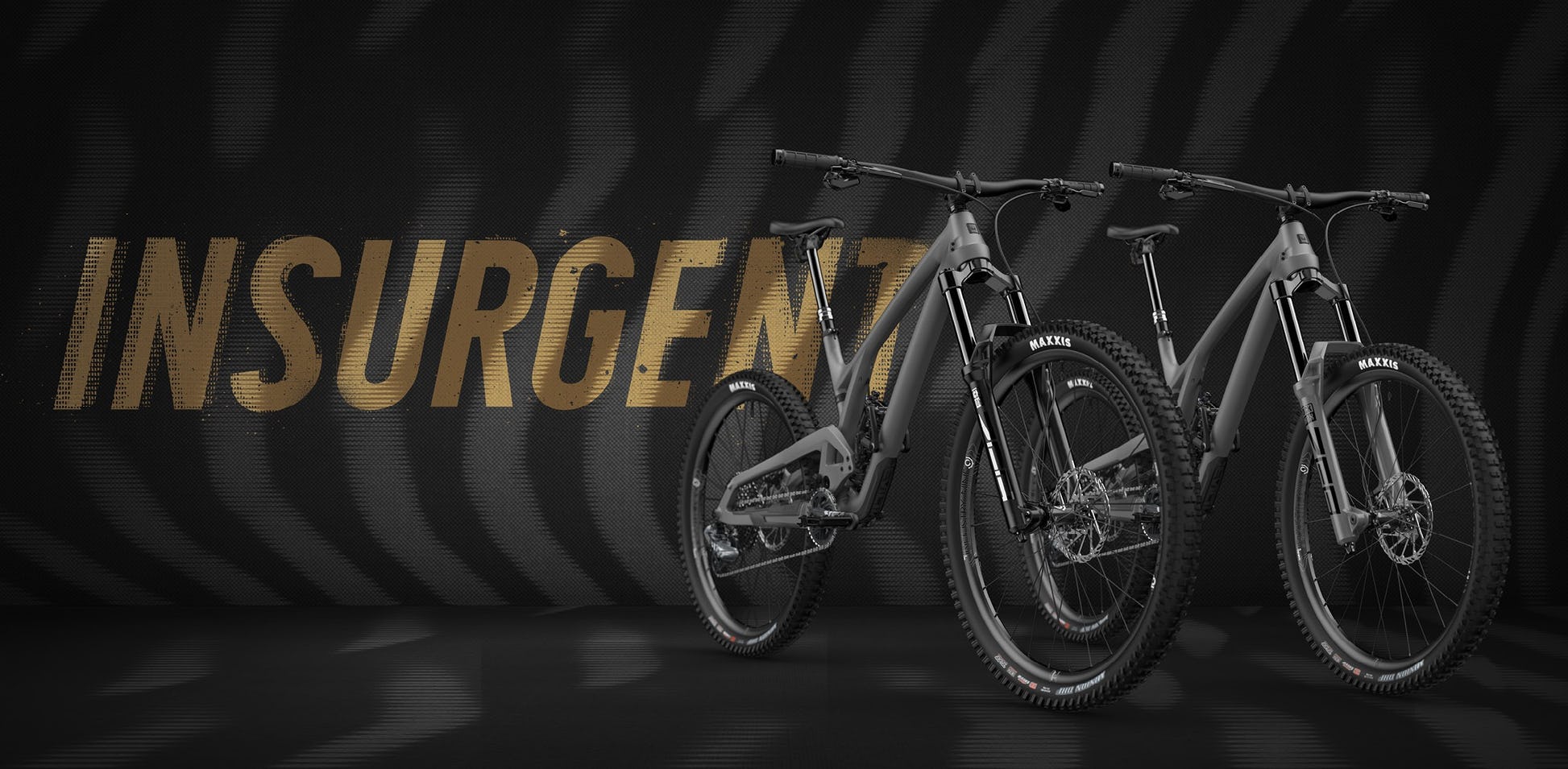

» Insurgent

Aktualizovaný insurgent LB je stále nekompromisní 27.5“ bike, připraven snášet brutální sjezdy, ostré klopky a šílené skoky.Stále krásně stoupá do jakéhokoliv kopce.

Došlo k rozšíření zadní stavby na už nyní standardní Boost a aktualizaci barev Freddy Mercury a Yogurt Truck.

Dále jsme dokázali vámu rámu stlačit o cca 400g a také přidali montážní body držáku bidonu.

Geometrie pro 160 mm vidlici

160mm zdvih vidlice	S	M	L	XL
A – Head Angle Low	65.6°	65.6°	65.6°	65.6°
Head Angle X-Low	64.8°	64.8°	64.8°	64.8°
B – Seat Tube Angle Low	74.3°	74.3°	74.3°	74.3°
Seat Tube Angle X-Low	73.4°	73.4°	73.4°	73.4°
C – Virtual Top Tube Length	598mm \| 23.50″	619mm \| 24.37″	640mm \| 25.20″	661mm \| 26.00″
D – Seat Tube Length	390mm \| 15.40″	425mm \| 16.70″	460mm \| 18.10″	495mm \| 19.50″
Bottom Bracket Height Low	346mm \| 13.60″	346mm \| 13.60″	346mm \| 13.60″	346mm \| 13.60″
E – Bottom Bracket Height X-Low	334.4mm \| 13.20″	334.4mm \| 13.20″	334.4mm \| 13.20″	334.4mm \| 13.20″
F – Head Tube Length	100mm \| 3.90″	114mm \| 4.50″	127mm \| 5.00″	141mm \| 5.60″
G – Chain Stay Length Low	430mm \| 16.93″	430mm \| 16.93″	430mm \| 16.93″	430mm \| 16.93″
Chain Stay Length X-Low	432mm \| 17.00″	432mm \| 17.00″	432mm \| 17.00″	432mm \| 17.00″
H – Wheel Base Low	1155mm \| 45.50″	1178mm \| 46.40″	1200mm \| 47.30″	1223mm \| 48.20″
Wheel Base X-Low	1157mm \| 45.60″	1180mm \| 46.50″	1202mm \| 47.30″	1224mm \| 48.20″
I – Standover	652mm \| 25.70″	681mm \| 26.80″	701mm \| 27.60″	715mm \| 28.10″
J – Axle to Crown	552mm	552mm	552mm	552mm
K – Offset	42mm	42mm	42mm	42mm
Stack	589mm \| 23.20″	602mm \| 23.70″	614mm \| 24.20″	627mm \| 24.70″
Reach	416mm \| 16.40″	433mm \| 17.10″	451mm \| 17.70″	468mm \| 18.40″
Sizing	5’3″ – 5’8″	5’8″ – 6’0″	6’0″ – 6’4″	6’4″

Geometrie pro 150 mm vidlici

150mm zdvih vidlice	S	M	L	XL
A – Head Angle Low	66.1°	66.1°	66.1°	66.1°
Head Angle X-Low	65.2°	65.2°	65.2°	65.2°
B – Seat Tube Angle Low	74.8°	74.8°	74.8°	74.8°
Seat Tube Angle X-Low	73.9°	73.9°	73.9°	73.9°
C – Virtual Top Tube Length	598mm \| 23.50″	619mm \| 24.37″	640mm \| 25.20″	661mm \| 26.00″
D – Seat Tube Length	390mm \| 15.40″	425mm \| 16.70″	460mm \| 18.10″	495mm \| 19.50″
Bottom Bracket Height Low	342mm \| 13.50″	342mm \| 13.50″	342mm \| 13.50″	342mm \| 13.50″
E – Bottom Bracket Height X-Low	331mm \| 13.00″	331mm \| 13.00″	331mm \| 13.00″	331mm \| 13.00″
F – Head Tube Length	100mm \| 3.90″	114mm \| 4.50″	127mm \| 5.00″	141mm \| 5.60″
G – Chain Stay Length Low	430mm \| 16.93″	430mm \| 16.93″	430mm \| 16.93″	430mm \| 16.93″
Chain Stay Length X-Low	432mm \| 17.00″	432mm \| 17.00″	432mm \| 17.00″	432mm \| 17.00″
Wheel Base Low	1151mm \| 45.30″	1174mm \| 46.20″	1196mm \| 47.10″	1219mm \| 48.00″
H – Wheel Base X-Low	1153mm \| 45.40″	1176mm \| 46.30″	1199mm \| 47.20″	1222mm \| 48.10″
I – Standover	651mm \| 25.60″	680mm \| 26.80″	700mm \| 27.60″	715mm \| 28.10″
J – Axle to Crown	542mm	542mm	542mm	542mm
K – Offset	42mm	42mm	42mm	42mm
Stack	586mm \| 23.07″	599mm \| 23.60″	611mm \| 24.00″	623mm \| 24.50″
Reach	421mm \| 16.60″	438mm \| 17.20″	455mm \| 17.90″	472mm \| 18.60″
Sizing	5’3″ – 5’8″	5’8″ – 6’0″	6’0″ – 6’4″	6’4″

Velikost

Component Sizing	Small	Medium	Large	XLarge
Stem Length	50mm	50mm	50mm	50mm
Stem Rise	5°	5°	5°	5°
Handlebar Rise	35mm	35mm	35mm	35mm
Handlebar Width	780mm	780mm	780mm	780mm
Crank Length	170mm	170mm	170mm	170mm
Sizing	5’3″ – 5’8″	5’8″ – 6’0″	6’0″ – 6’4″	6’4″

Naše vychytávky

BOLT ON AXLE

Our new axle bolts directly into the derailleur hanger for stiff hassle free operation.

CUSTOM ISCG05 MOUNTS

Custom ISCG05 tabs to accommodate our lower guide collaboration with e13 components.

DELTA SYSTEM

Completely redesigned with a focus on simplicity, weight reduction and strength. We increased lateral frame stiffness with redesigned dog bone links that use integrated forged bosses to connect the linkage and simplify maintenance.

DOWNTUBE PROTECTOR

Molded Rubber Downtube Protector keeps rocks and debris off the plastic and quiets the ride.

E13 CHAINGUIDE

Custom e13 lower guide and bash guard.

INTEGRATED CHAINGUIDE

Fully integrated carbon chainguide to keep that chain on.

INTERNAL ROUTING

Internal routing for stealth dropper posts. Rear derailleur and brake routing is cleanly routed under the toptube and the rear derailleur cable is internally routed through the swingarm to keep things tidy.

PLASTIC FANTASTIC

Uni Directional Carbon with One Piece Molded construction from one of the best factories in the business.

RUBBER PROTECTION

Integrated rubber protection for the chainstay and seat stay to keep things peaceful and quiet in the woods.

SAG METER

We added a fancy integrated SAG meter into the non-drive side Delta Link to make suspension set up easy. Push it forward, sit on your bike, adjust air pressure to 30%, then shred.
